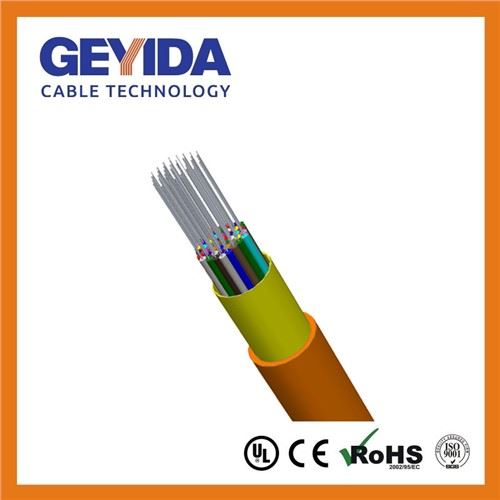

Indoor Optical Fiber Riser Cable

Our No.1 sales productsWe sell it to the French Telecom company ORANGEWe loaded it by full container with the pallet, better protection. We care very details.

Product Details

Advantages

Our No.1 sales products

We sell it to the French Telecom company ORANGE

We loaded it by full container with the pallet, better protection.We care very details.

High quality and reasonable prices

30 years quality warranty


Structure&Capability

Structure

Description

Tight-buffered fiber、strength member、jacket

Fiber

SM: G652D、G655、G657 Or other single-mode optical fibers.
MM: A1a、A1b Or other multi-mode fibers.

Strength Member

FRP

Jacket

Materials: low smoke halogen-free flame retardant polyolefin (LSZH) or other materials
Color: Color as specified by standard or other color.

Features

Application

Used as access building cable in premises distribution system,Especially suitable for indoor vertical cabling.
Floor optical branch.
Used in access network or as cable Vertical cabling in customer premises network.

Characteristic

Good mechanical and environmental performance.
Flame retardant (or non-flame retarding)characteristic meets the requirements of relevant standards.
Mechanical and physical properties of jacket meet the requirements of relevant standards.
Soft, flexible, easy to lay and splice, and with big capacity data transmission

Temperature

-20℃~+60℃

Parameter

Fiber Count

Cable Dimension (mm)

Cable Weight
(kg)

Tensile (N)

Crush (N/10cm)

Bending radius (mm)

Long Term

Short Term

Long Term

Short Term

Static

Dynamic

4~12

8.5

71

100

200

300

1000

10D

20D

24

10.5

99

100

200

300

1000

10D

20D

36

12.5

123

100

200

300

1000

10D

20D

48

13.5

146

100

200

300

1000

10D

20D


Options

Cable Dimension: The nominal cable dimension,or other customized dimension:

Delivery Length: 1.0km or 2.0km, or other customized length;

Other requirements: other customized special request.


Loading by the full container
