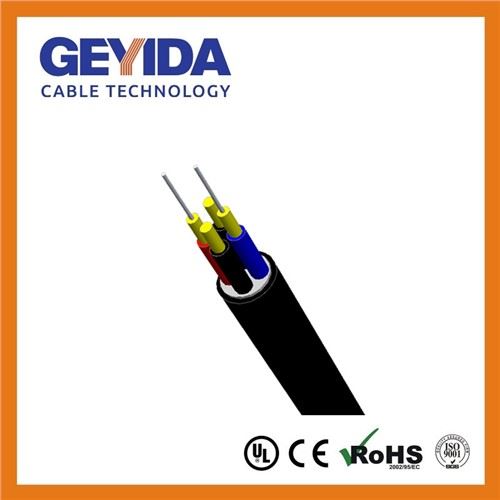

Indoor Duplex Round Far Transmission Optical Fiber Cable

We supply this cable to HUAWEI, made it to LC-LC Armored Waterproof patch cord,is used for the base station

Product Details

We supply this cable to HUAWEI, made it to LC-LC Armored Waterproof patch cord,is used for the base station

High speed transmission

Easy and convenient assembly

Structure&Capability

Structure
Description	Tight-buffered Fiber、Strength Member、Cable Sub-unit、Filler、Jacket
Fiber	SM: G652D、G655、G657 Or other single-mode optical fibers. MM: A1a、A1b Or other multi-mode fibers.
Strength Member	Aramid yarn or other high strength yarn.
Jacket	Materials: low smoke halogen-free flame retardant polyolefin (LSZH) or other materials Color: Color as specified by standard or other color.
Features
Application	Used in wireless base station horizontal cabling. Used in wireless base station vertical cabling. Used as pigtail of Communication equipment and adaptor, patch cord.
Characteristic	Good mechanical and environmental performance. Withstand indoor and outdoor environment, a wide range of usage temperature. Flame retardant (or non-flame retarding)characteristic meets the requirements of relevant standards. Anti-light radiation ,light weight ,non - metallic structure ,soft and pliable.
Temperature	-20℃～+60℃
Parameter
Fiber Count	Cable Dimension (mm)	Cable weight (kg)	Tensile (N)		Crush (N/10cm)		Bending radius (mm)
			Long Term	Short Term	Long Term	Short Term	Static	Dynamic
2	7.0	37.5	200	400	1000	200	10D	20D
