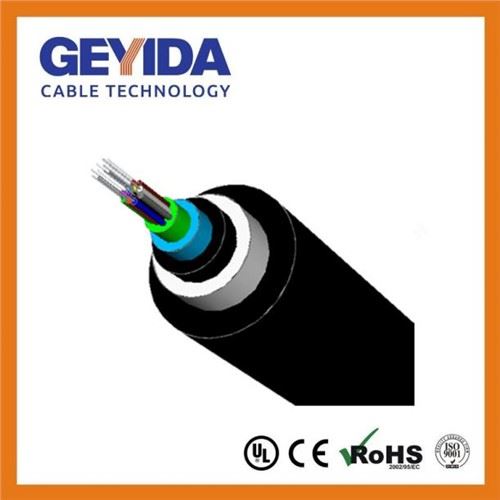

Direct Buried Armored Outdoor Fiber Optic Cable

Loose tube made of color coating fibers and filled with waterproof compounds.Loose tube stranded around the strength member which in the central of cable into cable core

Product Details

Structure&Capability

Structure

Description

Loose tube made of color coating fibers and filled with waterproof compounds.Loose tube stranded around the strength member which in the central of cable into cable core, a layer of water-blocking tape is longitudinal wrapped around the cable core, after APL longitudinal wrapped, an inner PE jacket extruded, then, after Corrugated steel is longitudinal wrapped, then an outer jacket extruded.

Fiber

SM: G652D、G655、G657 Or other single-mode optical fibers.
MM: A1a、A1b Or other multi-mode fibers.

Jacket

Materials: polyethylene(PE), low smoke halogen-free flame retardant polyolefin (LSZH), flame-retardant polyethylene (ZRPE) or other materials.
Color: black or other colors.

Features

Application

Suitable to direct bury.
Suitable for duct.

Characteristic

Good mechanical and environmental performance.
High strength loose tube that is hydrolysis resistant.
Crush resistance and Flexibility.
Various measures to ensure the cable watertight.

Temperature

-40℃~+70℃

Parameter

Fiber Count

Cable Dimension(mm)

Cable weight
(kg)

Tensile(N)

Crush(N/10cm)

Bending Radius(mm)

Long Term

Short Term

Long Term

Short Term

Static

Dynamic

2~60

13.2

178

1000

3000

1000

3000

10D

20D

72

14.6

198

1000

3000

1000

3000

10D

20D

96

15.3

223

1000

3000

1000

3000

10D

20D

144

18.0

301

1000

3000

1000

3000

10D

20D


Options

Cable Dimension: The nominal cable dimension,or other customized dimension.

Delivery Length: 1.0km or 2.0km, or other customized length.

Other requirements: other customized special request.
