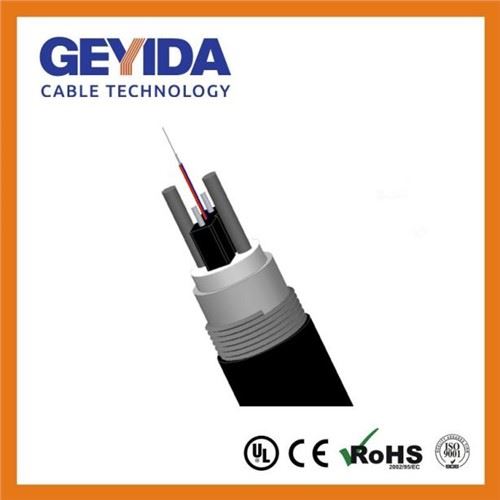

Dry Structure Micro-tube Cabling Fiber Optic Cable

We make the Max.288core micro module cableWe make the color coating by ourself, 100% controlWe use the imported Fiber from Germany J-fiber

Product Details

Description

We make the Max.288core micro module cable

We make the color coating by ourself,100% control

We use the imported Fiber from Germany J-fiber

We Test them 100% from raw materials to finish

We care every details

Your satisfied is our goal

Structure&Capability

Structure
Description	Color Coating Fiber、Micro-tube、Filler,Central Strength Member、Cushion、Strength Member、Jacket
Fiber	SM: G652D、G655、G657 Or other single-mode optical fibers. MM: A1a、A1b Or other multi-mode fibers.
Strength Member	Strength Member: Aramid yarn or other high strength yarn. Central Strength Member: FRP＋Cushion
Jacket	Materials: flame retardant polyvinyl chloride (PVC), low smoke halogen-free flame retardant polyolefin (LSZH), flame-retardant polyethylene (ZRPE) or other materials. Color: Color as specified by standard or other color.
Features
Application	Used as access building cable in premises distribution system，Especially suitable for indoor vertical cabling. Floor optical branch. Used in access network or as vertical cabling cable in customer premises network.
Characteristic	Good mechanical and environmental performance. Flame retardant (or non-flame retarding)characteristic meets the requirements of relevant standards. Mechanical and physical properties of jacket meet the requirements of relevant standards. Soft, flexible, easy to lay and splice, and with big capacity data transmission.
Temperature	-20℃～+60℃
Parameter
Fiber Count	Cable Dimension（mm）	Cable weight （kg）	Tensile（N）		Crush（N/10cm）		Bending radius（mm）
Fiber Count	Cable Dimension（mm）	Cable weight （kg）	Long Term	Short Term	Long Term	Short Term	Static	Dynamic
4～72	7.0	45	150	300	300	1000	10D	20D
96	8.0	62	350	700	300	1000	10D	20D
144	10.0	100	350	700	300	1000	10D	20D
